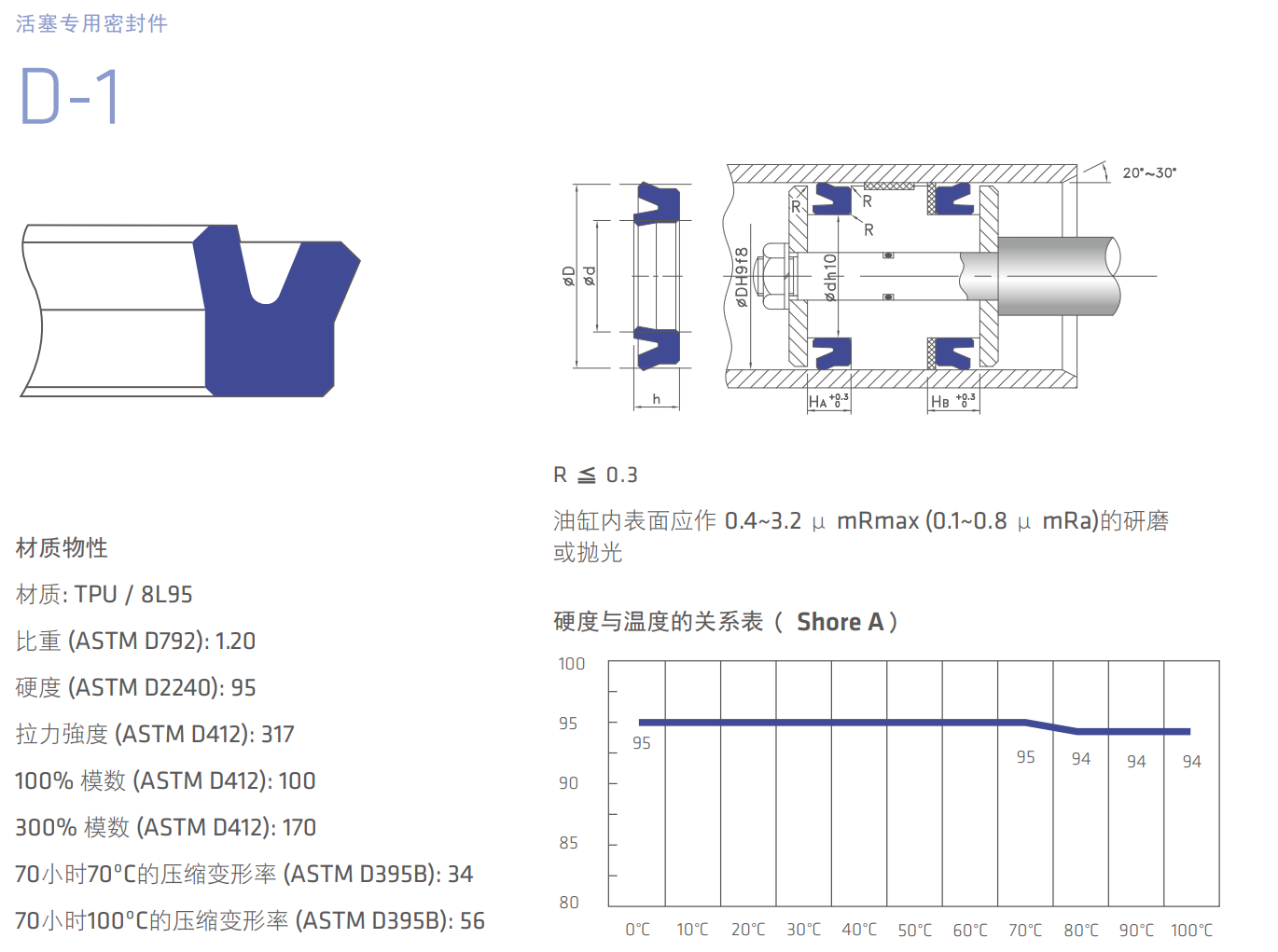

项目 | Ø d | Ø D | h | HA |
---|---|---|---|---|
D-1 | 5 | 15 | 8 | 9 |
D-1 | 6 | 15 | 8 | 9 |
D-1 | 8 | 14 | 4 | 5 |
D-1 | 10 | 16 | 4.5 | 5.5 |
D-1 | 11.2 | 19.2 | 5 | 6 |
D-1 | 14 | 22 | 5 | 6 |
D-1 | 17 | 25 | 4 | 5 |
D-1 | 17 | 25 | 10 | 11 |
D-1 | 19 | 34 | 8 | 9 |
D-1 | 20 | 30 | 5 | 6 |
D-1 | 23 | 31 | 5 | 6 |
D-1 | 25 | 32 | 5.8 | 6.5 |
D-1 | 25 | 40 | 12 | 13 |
D-1 | 26 | 32 | 5 | 6 |
D-1 | 27 | 35 | 5 | 6 |
D-1 | 29 | 37 | 5.5 | 6.5 |
D-1 | 30 | 40 | 6 | 7 |
D-1 | 30 | 40 | 6.5 | 7.5 |
D-1 | 30 | 40 | 8 | 9 |
D-1 | 30 | 45 | 6 | 7 |
D-1 | 30 | 45 | 12 | 13 |
D-1 | 33 | 45 | 9 | 10 |
D-1 | 35 | 45 | 6 | 7 |
D-1 | 35 | 45 | 8 | 9 |
D-1 | 35 | 48 | 10 | 11 |
D-1 | 35 | 50 | 9 | 10 |
D-1 | 35 | 50 | 12 | 13 |
D-1 | 35 | 55 | 12 | 13 |
D-1 | 36 | 46 | 7 | 8 |
D-1 | 37 | 45 | 6 | 7 |
D-1 | 40 | 50 | 6 | 7 |
D-1 | 40 | 50 | 6.5 | 7.5 |
D-1 | 40 | 50 | 8 | 9 |
D-1 | 40 | 50 | 9 | 10 |
D-1 | 40.8 | 50.8 | 7 | 8 |
D-1 | 45 | 55 | 6 | 7 |
D-1 | 45 | 56 | 7 | 8 |
D-1 | 45 | 60 | 10 | 11 |
D-1 | 45 | 65 | 12 | 13 |
D-1 | 46 | 56 | 6 | 7 |
D-1 | 48 | 63 | 9 | 10 |
D-1 | 48 | 63 | 10 | 11 |
D-1 | 48 | 63 | 11.5 | 12.5 |
D-1 | 50 | 60 | 5 | 6 |
D-1 | 50 | 60 | 6 | 7 |
D-1 | 50 | 60 | 7 | 8 |
D-1 | 50 | 60 | 8 | 9 |
D-1 | 50 | 63 | 14 | 15 |
D-1 | 50 | 65 | 9 | 10 |
D-1 | 50 | 70 | 9 | 10 |
D-1 | 50 | 70 | 12 | 13 |
D-1 | 53 | 63 | 6 | 7 |
D-1 | 53 | 63 | 6.5 | 7.5 |
D-1 | 53 | 65 | 14 | 15 |
D-1 | 55 | 70 | 9 | 10 |
D-1 | 55 | 70 | 10 | 11 |
D-1 | 55 | 70 | 12 | 13 |
D-1 | 55 | 75 | 12 | 13 |
D-1 | 58 | 72 | 12 | 13 |
D-1 | 60 | 70 | 6 | 7 |
D-1 | 60 | 70 | 8 | 9 |
D-1 | 60 | 70 | 12 | 13 |
D-1 | 60 | 75 | 13 | 14 |
D-1 | 61 | 71 | 6 | 7 |
D-1 | 64 | 80 | 12 | 13 |
D-1 | 65 | 75 | 6 | 7 |
D-1 | 65 | 80 | 10 | 11 |
D-1 | 70 | 80 | 6 | 7 |
D-1 | 70 | 80 | 8 | 9 |
D-1 | 70 | 86 | 12 | 13 |
D-1 | 71 | 80 | 6.5 | 7.5 |
D-1 | 73 | 85 | 14 | 15 |
D-1 | 75 | 88 | 9.5 | 10.5 |
D-1 | 75 | 90 | 9 | 10 |
D-1 | 75 | 90 | 10 | 11 |
D-1 | 75 | 100 | 18 | 19 |
D-1 | 78 | 90 | 14 | 15 |
D-1 | 80 | 90 | 6 | 7 |
D-1 | 80 | 95 | 9 | 10 |
D-1 | 80 | 100 | 14.5 | 15.5 |
D-1 | 83 | 95 | 14 | 15 |
项目 | Ø d | Ø D | h | HA |
---|---|---|---|---|
D-1 | 85 | 100 | 9 | 10 |
D-1 | 85 | 100 | 9.5 | 10.5 |
D-1 | 89 | 105 | 18 | 19 |
D-1 | 90 | 105 | 9 | 10 |
D-1 | 94 | 110 | 18 | 19 |
D-1 | 95 | 110 | 9 | 10 |
D-1 | 98 | 110 | 14 | 15 |
D-1 | 100 | 115 | 9 | 10 |
D-1 | 100 | 120 | 12 | 13 |
D-1 | 100 | 120 | 13 | 14 |
D-1 | 100 | 130 | 12 | 13 |
D-1 | 105 | 120 | 9 | 10 |
D-1 | 104 | 120 | 18 | 19 |
D-1 | 106 | 120 | 8.5 | 9.5 |
D-1 | 108 | 120 | 14 | 15 |
D-1 | 109 | 125 | 18 | 19 |
D-1 | 110 | 120 | 6 | 7 |
D-1 | 110 | 125 | 9 | 10 |
D-1 | 110 | 125 | 10 | 11 |
D-1 | 110 | 130 | 12 | 13 |
D-1 | 112 | 125 | 9 | 10 |
D-1 | 115 | 130 | 9 | 10 |
D-1 | 118 | 133 | 9 | 10 |
D-1 | 120 | 130 | 13.5 | 14.5 |
D-1 | 120 | 140 | 13 | 14 |
D-1 | 124 | 140 | 18 | 19 |
D-1 | 125 | 140 | 9 | 10 |
D-1 | 128 | 140 | 14 | 15 |
D-1 | 130 | 150 | 15 | 16 |
D-1 | 135 | 150 | 9 | 10 |
D-1 | 135 | 160 | 19 | 20 |
D-1 | 140 | 150 | 7 | 8 |
D-1 | 140 | 160 | 13 | 14 |
D-1 | 145 | 160 | 9 | 10 |
D-1 | 148 | 160 | 15.5 | 16.5 |
D-1 | 150 | 160 | 12.5 | 13.5 |
D-1 | 150 | 170 | 15 | 16 |
D-1 | 154 | 170 | 18 | 19 |
D-1 | 155 | 170 | 9 | 10 |
D-1 | 165 | 180 | 9 | 10 |
D-1 | 174 | 190 | 18 | 19 |
D-1 | 175 | 190 | 9 | 10 |
D-1 | 175 | 200 | 18.2 | 19.2 |
D-1 | 190 | 210 | 12 | 13 |
D-1 | 195 | 220 | 16 | 17 |
D-1 | 200 | 220 | 12 | 13 |
D-1 | 204 | 220 | 18 | 19 |
D-1 | 215 | 240 | 16 | 17 |
D-1 | 220 | 240 | 12 | 13 |
D-1 | 225 | 250 | 19 | 20 |
D-1 | 230 | 250 | 12 | 13 |
D-1 | 230 | 250 | 12.5 | 13.5 |
D-1 | 230 | 255 | 22 | 23 |
D-1 | 234 | 250 | 18 | 19 |
D-1 | 270 | 300 | 19 | 20 |
D-1 | 270 | 300 | 24 | 25 |
D-1 | 284 | 300 | 18 | 19 |
D-1 | 290 | 320 | 19 | 20 |
D-1 | 300 | 330 | 19 | 20 |
D-1 | 370 | 400 | 22 | 23 |
D-1" | 5/8 | 7/8 | 1/8 | 0.138 |
D-1" | 1 1/2 | 1 7/8 | 17/64 | 0.312 |
D-1" | 1 1/2 | 2 | 3/8 | 0.413 |
D-1" | 1 1/2 | 2 1/8 | 3/8 | 0.413 |
D-1" | 1 1/4 | 1 3/4 | 3/8 | 0.413 |
D-1" | 1 1/8 | 1 3/4 | 1/2 | 0.55 |
D-1" | 1 5/16 | 1 3/4 | 3/8 | 0.413 |
D-1" | 2 | 2 1/2 | 3/8 | 0.413 |
D-1" | 2 1/2 | 3 | 3/8 | 0.413 |
D-1" | 2 1/2 | 3 1/4 | 1/2 | 0.55 |
D-1" | 2 3/8 | 3 | 1/2 | 0.55 |
D-1" | 2 3/8 | 3 | 3/8 | 0.413 |
D-1" | 3 1/2 | 4 | 3/8 | 0.413 |
D-1" | 3 3/4 | 4 1/2 | 1/2 | 0.55 |
D-1" | 4 | 4 1/2 | 3/8 | 0.413 |
D-1" | 4 1/2 | 5 | 3/8 | 0.413 |
D-1" | 10 3/8 | 10 7/8 | 17/32 | 0.6 |
D-1" | 11 3/8 | 11 7/8 | 17/32 | 0.6 |
D-1" | 12 3/8 | 12 7/8 | 17/32 | 0.6 |
D-1" | 13 3/8 | 13 7/8 | 17/32 | 0.6 |
D-1" | 15 3/8 | 15 7/8 | 17/32 | 0.6 |
