DZ鼎基D-2活塞杆专用U圈-广东鼎航科技有限公司DHS

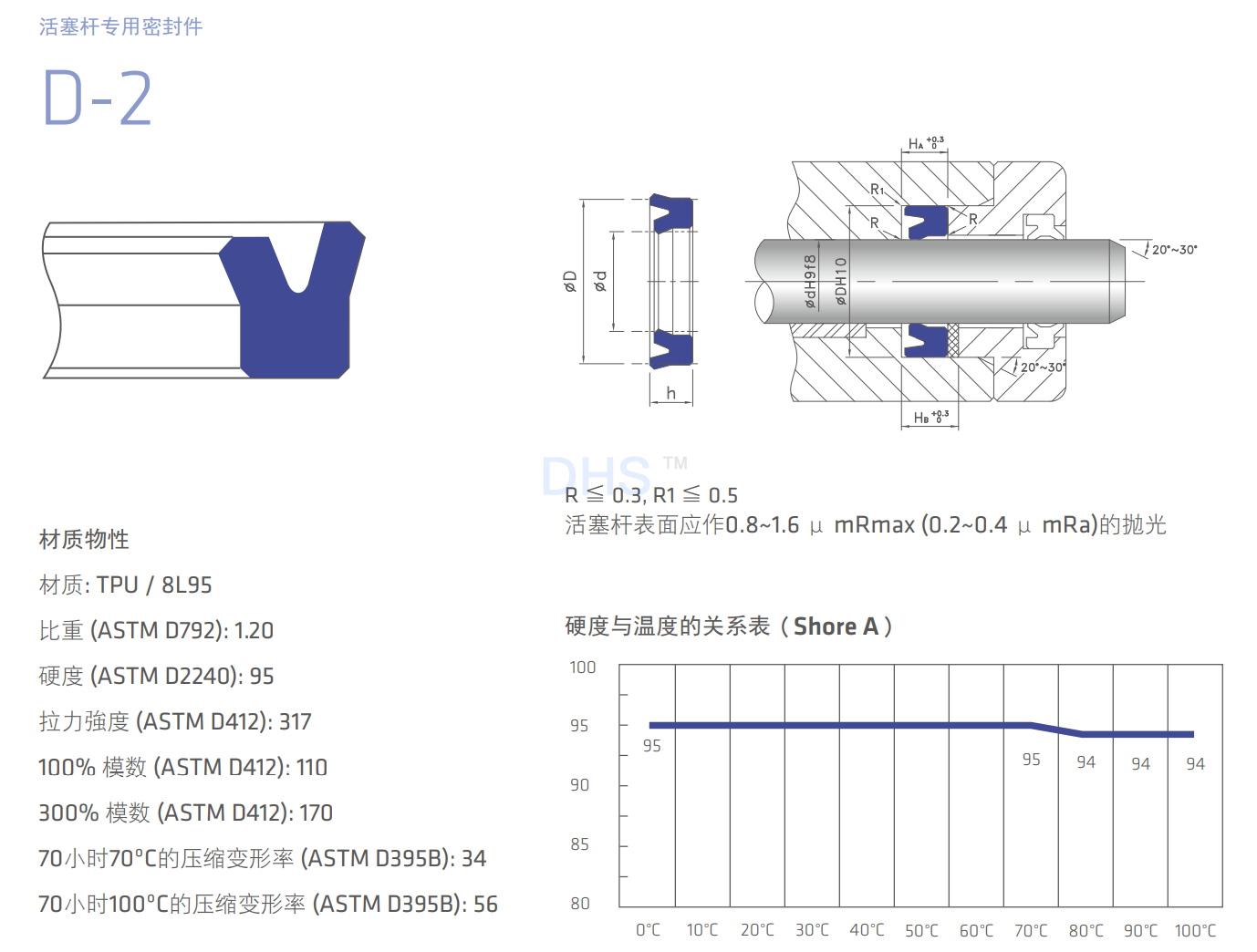

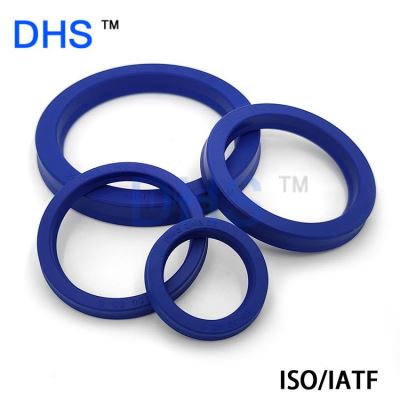

DZ鼎基D-2活塞杆专用U圈

特点：活塞杆专用

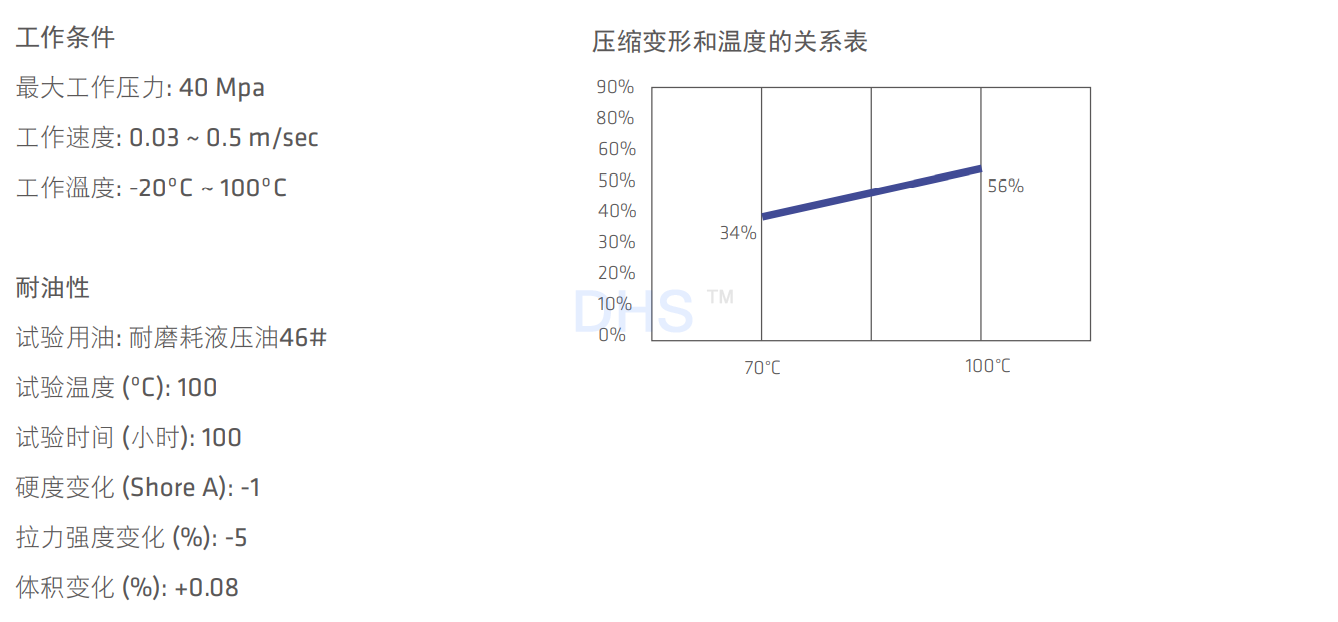

工作条件最大工作压力: 40 Mpa 工作速度: 0.03 ~ 0.5 m/sec 工作溫度: -20ºC ~ 100ºC

项目	Ø d	Ø D	h	HA
D-2	6	12	5	5.6
D-2	10	16	4.5	5.2
D-2	10	20	8	9
D-2	11.3	16	3.5	4.5
D-2	12	20	5.8	6.3
D-2	12	22	8	9
D-2	14	22	5	5.7
D-2	14	22	5.7	6.3
D-2	14	24	6	7
D-2	15	21	5	5.7
D-2	15	23	5	5.7
D-2	16	22	5	5.7
D-2	16	24	5	5.7
D-2	16	24	5.7	6.3
D-2	17	25	10	11
D-2	18	26	5	5.7
D-2	18	26	6	7
D-2	18	26	8	9
D-2	18	28	8.2	9.2
D-2	19	27	6	7
D-2	20	25	5	5.7
D-2	20	26	5	5.7
D-2	20	27	6	7
D-2	20	28	5	5.7
D-2	20	28	7.2	8
D-2	20	30	6	7
D-2	20	30	8	9
D-2	20	33	10	11
D-2	21	29.5	5	5.7
D-2	22	30	5	5.7
D-2	22	30	8	9
D-2	22.4	30	5.2	5.7
D-2	22.7	33	5.3	6
D-2	23	35	6	7
D-2	25	32	5	5.7
D-2	25	33	5	5.7
D-2	25	33	5.8	6.3
D-2	25	33	10	11
D-2	28	35.5	5	5.7
D-2	28	36	8	9
D-2	28	38	10	11
D-2	30	38	5.7	6.3
D-2	30	40	6	7
D-2	30	40	7	8
D-2	30	42	12	13
D-2	30	43	10	11
D-2	30	45	9	10
D-2	30	47	7	8
D-2	30	48	7	8
D-2	32	40	5.7	6.3
D-2	32	40	6	7
D-2	32	40	8	9
D-2	32	42	6	7
D-2	32	45	10	11
D-2	32	47	10	11
D-2	32	48	10	11
D-2	33	43	10	11
D-2	35	42	7	8
D-2	35	43	6.3	7
D-2	35	45	6	7
D-2	35	45	7	8
D-2	35	45	10	11
D-2	35	50	9	10
D-2	35.5	45	6.5	7.5
D-2	36	44	5.7	6.3
D-2	36	46	10	11
D-2	37	47	6	7
D-2	38.08	57.15	12.7	13.9
D-2	39	58	10	11
D-2	40	47	6	7
D-2	40	50	6	7
D-2	40	50	7	8
D-2	40	55	9	10
D-2	40	55	10	11
D-2	42	52	7.3	8
D-2	42	58	13	14
D-2	45	53	10	11
D-2	45	55	5.7	6.3
D-2	45	55	6	7
D-2	45	55	6.5	7.5
D-2	45	55	7	8
D-2	45	55	8	9
D-2	45	60	9	10
D-2	45	60	10	11
D-2	48	58	10	11
D-2	48	63	9	10
D-2	50	60	6	7
D-2	50	60	7	8
D-2	50	60	8	9
D-2	50	63	8	9
D-2	50	63	10	11
D-2	50	65	9	10
D-2	50	65.5	6	7
D-2	52	62	10	11
D-2	53	70	9	10
D-2	55	63	12	13
D-2	55	65	6	7
D-2	55	65	7	8
D-2	55	68	10	11
D-2	55	70	9	10
D-2	55	75	12	13
D-2	56	70	11.5	12.5
D-2	57	84	16	17
D-2	57.15	73.03	9.7	10.5
D-2	60	68	6.3	7
D-2	60	70	6	7
D-2	60	70	7.5	8.5
D-2	60	70	10	11
D-2	60	70	12	13
D-2	60	73	10	11
D-2	60	75	9	10
D-2	60	76	10	11
D-2	60	80	12	13
D-2	63	73	12	13
D-2	63.45	76.25	9.5	10.5
D-2	65	75	6	7
D-2	65	75	8	9
D-2	65	78	10	11
D-2	65	80	9	10

项目	Ø d	Ø D	h	HA
D-2	65	80	12	13
D-2	65	85	12	13
D-2	67	84	16	17
D-2	70	80	6	7
D-2	70	82	8.7	9.6
D-2	70	83	10	11
D-2	70	83	13	14
D-2	70	85	9	10
D-2	70	90	10	11
D-2	70	90	12	13
D-2	72	87	9	10
D-2	75	85	6	7
D-2	75	85	7	8
D-2	75	88	10	11
D-2	75	90	9	10
D-2	75	95	10	11
D-2	75	95	12	13
D-2	75	95	13	14
D-2	76.5	90.5	10	11
D-2	77	87	12	13
D-2	80	90	8	9
D-2	80	93	10	11
D-2	80	93	13	14
D-2	80	95	9	10
D-2	80	95	10	11
D-2	80	100	12	13
D-2	85	93	11	12
D-2	85	100	9	10
D-2	85	100	10	11
D-2	85	100	13	14
D-2	85	105	12	13
D-2	85	105	13	14
D-2	86	102	16	17
D-2	90	98	6.3	7
D-2	90	100	13	14
D-2	90	102	8.7	9.6
D-2	90	105	9	10
D-2	90	105	10	11
D-2	90	110	12	13
D-2	90	110	13	14
D-2	95	110	9	10
D-2	95	110	10	11
D-2	95	110	12	13
D-2	95	110	13.5	14.5
D-2	95	115	12	13
D-2	95	115	13.5	14.5
D-2	97	105	13	14
D-2	98	113	9	10
D-2	99	109	12	13
D-2	100	113	12.5	13.5
D-2	100	115	9	10
D-2	100	115	10	11
D-2	100	115	13.5	14.5
D-2	100	120	12	13
D-2	105	113	11	12
D-2	105	120	9	10
D-2	105	125	12	13
D-2	110	120	6	7
D-2	110	125	9	10
D-2	110	125	10	11
D-2	110	130	10	11
D-2	110	130	12	13
D-2	110	130	13	14
D-2	112	125	9	10
D-2	115	127	14	15
D-2	115	130	9	10
D-2	115	135	12	13
D-2	115	135	16	17
D-2	118	133	9	10
D-2	118	134	16	17
D-2	120	135	9	10
D-2	120	140	12	13
D-2	125	140	9	10
D-2	130	145	9	10
D-2	130	150	9	10
D-2	130	150	12	13
D-2	130	150	16	17
D-2	140	150	6	7
D-2	140	155	9.5	10.5
D-2	140	155	10	11
D-2	140	160	16	17
D-2	150	165	9	10
D-2	150	170	12	13
D-2	160	180	12	13
D-2	160	185	16	17
D-2	165	180	9	10
D-2	170	195	15	16
D-2	170	195	16	17
D-2	175	195	17	18
D-2	180	190	14	15
D-2	180	195	12	13
D-2	180	200	12	13
D-2	180	205	15	16
D-2	180	205	16	17
D-2	200	225	19	20
D-2	210	230	12	13
D-2	220	250	19	20
D-2	280	310	19	20
D-2	320	340	15	16
D-2"	3/4	340	3/16	0.207
D-2"	7/8	1 1/8	1/8	0.138
D-2"	13/16	1 1/16	1/8	0.138
D-2"	1 1/2	1 3/4	1/4	0.275
D-2"	1 1/2	1 3/4	3/16	0.207
D-2"	1 1/2	1 7/8	1/4	0.275
D-2"	1 3/16	1 11/16	5/16	0.344
D-2"	1 3/4	2 1/4	5/16	0.344
D-2"	1 3/4	2 1/8	1/4	0.275
D-2"	1 5/8	2	5/16	0.344
D-2"	2	2 1/2	3/8	0.413
D-2"	2 1/2	3	3/8	0.413
D-2"	2 1/4	2 7/8	1/2	0.55
D-2"	2 3/8	3	3/8	0.413
D-2"	3	3 1/2	3/8	0.413
D-2"	3 1/2	4	3/8	0.413
D-2"	3 1/4	3 3/4	3/8	0.413
D-2"	3 3/8	4	5/8	0.688
D-2"	6 1/2	7 1/2	5/8	0.688
